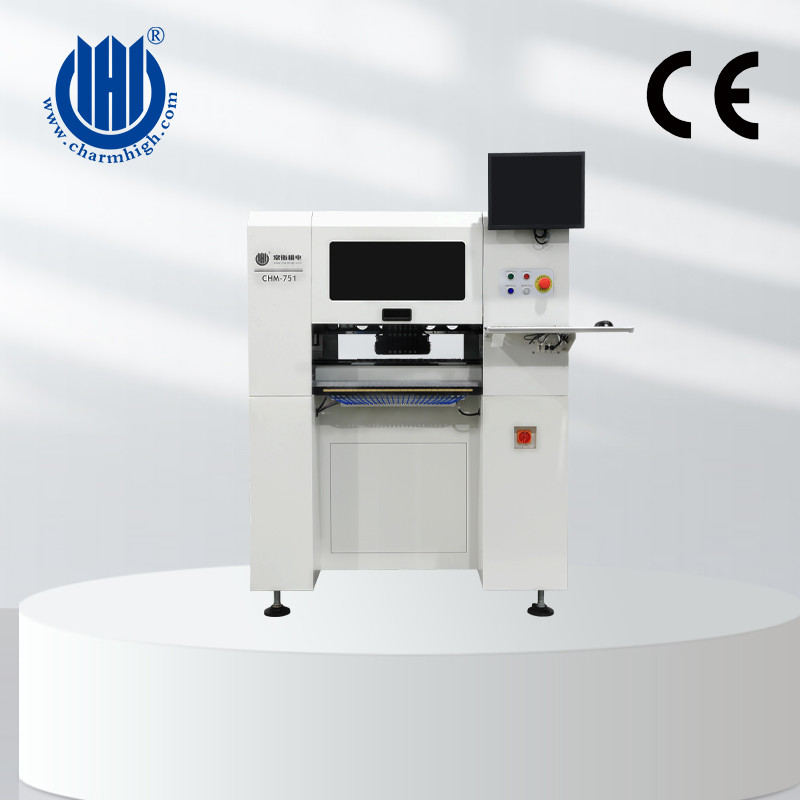

New Product CHM-751 SMT LED Fully Automatic Placement Machine Machine With Vision
CHM-751 has 6 heads, mounting speed is faster. For SMT production, it is your good helper!
The operation system is Windows 10 system, the main board of machine was researched by ourselves, which is more reliable, and life time is much longer. CHM-751 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP, QFN, LQFP, Diode, Transistor, BGA...etc, which can meet more customers' demand.
CHM-750 pick and place machine It is widely used in intelligent appliance , LED , power supply, automotive electronics, main controller and etc.
Spotlights:
1. Six Precision Heads 6 high-precision placement heads with ±180°rotation that adopts high degree of coupling way. to ensure mounting components with higher space, more gentle and more accurate
2. AutoRails
0.8m auto rails could be connected with universal conveyors to achieve continuous placement
3.Dual Vision System An up-looking camera and a down-looking camera identifies and calibrates the different components simultaneously and tremendously improves the accuracy of placement from 0201 to BGA high speed industry cameras can recognize and align different component for six mounting heads.
| CHM-751 Specifications |
| Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
| Weight | 540kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Japan PISCO Vacuum generator |
| Mounting Head Quantity | 6 |
| Mounting Speed | 17000cph (optimal) |
| Mounting Accuracy | ±50μm CPK≥1.0(XY) |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors (Y axis by double motors);
adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ground Ball screw + linear guide (Y axis with double screws) |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×6 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
Mark camera×2 |
Does your machines have quality certificate?
Charmhigh already owns 24 property rights, including 22 national patents and two software copyrights, and has passed ISO quality management system certification, EU CE certification, ROHS certification, and US FCC, SGS and other international certifications.
The Warranty of the machine?
One year,then the parts will be free for the buyer in the warranty.
